Nexperia unveils industry’s first coin cell battery life and power booster

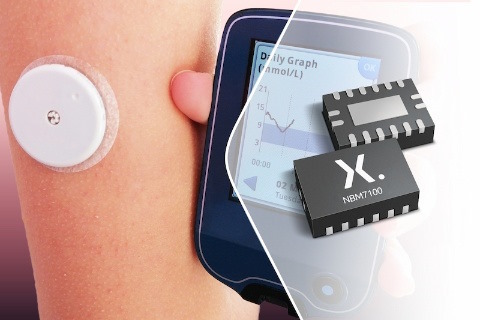

Nexperia has introduced the NBM7100 and NBM5100, revolutionary new types of battery life boosting ICs designed to extend the life of a typical non-rechargeable lithium coin cell battery by up to 10x compared to competing solutions while also increasing its peak output current capability by up to 25x compared to what a typical coin cell can deliver without a battery booster. This unrivalled extension in working life will significantly reduce the amount of battery waste in low-power Internet of Things (IoT) and other portable applications while making coin cells a viable power source for applications which could previously only operate from AA- or AAA- batteries.

CR2032 and CR2025 Lithium coin cells have higher energy density and longer shelf life. As a result, they are commonly used in low-power applications, including devices with Low Power Wi-Fi, LoRa, Sigfox, Zigbee, LTE-M1, and NB-IoT transceivers. However, these batteries have relatively high internal resistance and chemical reaction rates that reduce their usable capacity when under pulsed-load conditions. To overcome this limitation, the NBM7100 and NBM5100 contain two high-efficiency DC/DC conversion stages and an intelligent learning algorithm. The first conversion stage transfers energy from the battery to a capacitive storage element at a low rate. The second stage utilizes the stored energy to provide a regulated (programmable from 1.8V to 3.6V) high pulse (up to 200mA) current output. The intelligent learning algorithm monitors the energy used during repetitive load pulse cycles and optimizes first stage DC/DC conversion to minimize the residual charge in the storage capacitor. When not performing an energy conversion cycle (standby state), these devices consume less than 50nA (more info).
