Professional magazine and portal dedicated to electronics 2 kW, 48 V/14 V, Regulated Output Voltage, DC-DC Reference Design Board with EPC latest GaN FETs

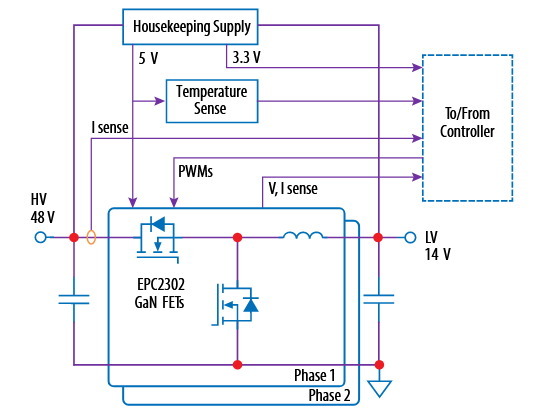

EPC announces the availability of the EPC9165, a 2 kW, two-phase 48 V – 14 V bidirectional converter that operates with 97 % peak efficiency in a small footprint. This solution is ideal for high-density and high-power 48V battery packs such as those required for eMobility and light mobility.
The solution is scalable; two converters can be paralleled for 4 kW, three converters for 6 kW or only one phase can be used for 1 kW. In this application, the output voltage is 14V; however, since the topology is a hard-switching buck converter, the output voltage can easily be adjusted for voltages between 12 V and 36 V.
The EPC9165 reference design features the EPC2302 GaN FET, which uses EPC’s latest generation 100 V GaN technology. The EPC2302 delivers 101 A continuous current and 390 A pulsed current (more info).
