TDK offers extremely compact TVS diodes for complete ESD protection of USB-C

TDK Corporation presents new series of extremely compact TVS diodes with parameters matched to the various ports of the USB-C port as well as other high-speed interfaces. TVS diodes with very low parasitic capacitance values and low clamping voltage are required especially for the high-speed ports (Tx / Rx) of USB-C, which operate at up to 40 Gbit/s with USB4 version 1.

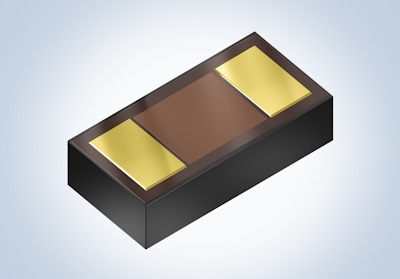

The B74111U0033M060 and B74121U0033M060 types are suitable for this purpose, with very low capacitance values of 0.48 pF and 0.65 pF at 1 MHz, respectively, which means that signal integrity is not compromised. The clamping voltages are only 3.8 V or 3.9 V with an ITLP of 8 A. The protection devices are designed for ESD discharge voltages of up to 15 kV. These TVS diodes are manufactured in the extremely compact WLCSP 01005 and WLCSP 0201 packages and are extremely flat with heights of 100 µm and 150 µm respectively. This means that the TVS diodes can also be integrated into USB-C SIP modules.

The new B74111U0055M060 and B74121U0055M060 types with maximum DC voltages of up to 5.5 V are suitable for the conventional USB2.0 data bus of USB-C (D+ / D-, more info).
