Vishay Intertechnology Standard Rectifiers Deliver High Current Ratings to 4 A, Are Industry’s First in Power DFN Series DFN3820A Package

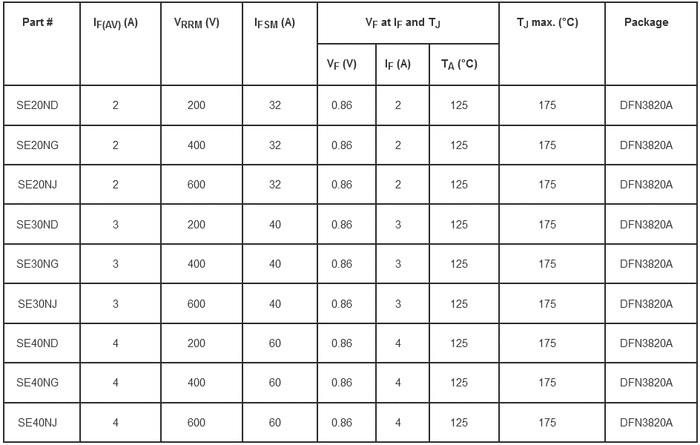

Vishay Intertechnology introduced three new series of Automotive Grade surface-mount standard rectifiers that are the industry’s first devices in the low profile DFN3820A package with wettable flanks. Providing space-saving, high efficiency solutions for power line polarity protection and rail to rail protection in commercial, industrial, and automotive applications, the 2 A SE20Nx, 3 A SE30Nx, and 4 A SE40Nx are each available with reverse voltages of 200 V, 400 V, and 600 V.

The first package in Vishay’s new Power DFN family, the DFN3820A features a compact 3.8 mm by 2.0 mm footprint and an extremely low typical height of 0.88 mm, allowing the Vishay General Semiconductor rectifiers released today to make more efficient use of PCB space. At the same time, the devices’ optimized copper mass design and advanced die placement technology allow for superior thermal performance that enables operation at higher current ratings.

Compared to devices in the SMP (DO-220AA) package with the same footprint, the AEC-Q101 qualified SE20Nx, SE30Nx, and SE40Nx offer a 12 % lower profile and double the current rating (more info).
