Toshiba extends TC75W series of CMOS dual comparators for overcurrent detection in industrial equipment

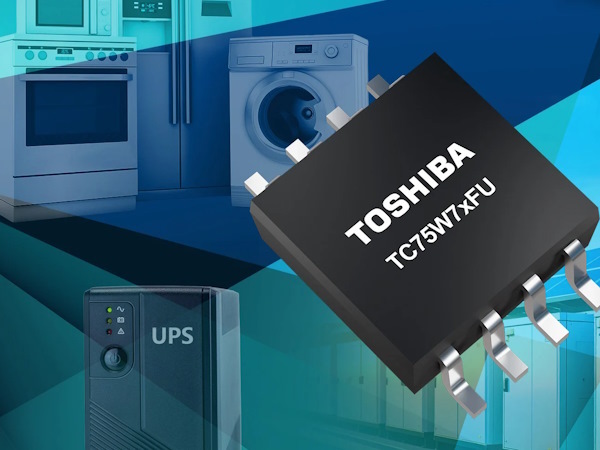

Toshiba extends its TC75W series of CMOS dual comparators for overcurrent detection in industrial equipment, with the introduction of the TC75W71FU. Featuring high-speed response times and a full input/output range, the product enables immediate shutdown for enhanced operational safety and supports low-voltage operation. Target applications include industrial robots, photovoltaic systems, uninterruptible power supplies (UPS), and transformers.

The TC75W71FU delivers significant performance improvements over the existing TC75W56FU, particularly in propagation delay. The new device achieves a maximum delay of 45ns for low-to-high transitions and 30ns for high-to-low transitions compared to 550ns and 250ns, respectively, for the TC75W56FU. This high-speed response capability ensures that industrial systems can shut down immediately in the event of an overcurrent, thereby greatly enhancing operational safety.

To facilitate easier design integration, the TC75W71FU features a full input/output voltage range (rail-to-rail), allowing the component to operate effectively from the minimum supply voltage (GND) to the maximum supply voltage (Vcc). Furthermore, the device supports low-voltage operation with a minimum operating supply voltage of 1.8V, making it a versatile choice for a wide range of circuit requirements (more info).
