ROHM has added New Lineup of 17 High-Performance Op Amps Enhancing Design Flexibility

ROHM has added the new CMOS Operational Amplifier (op amp) series “TLRx728” and “BD728x” to its lineup. These are suitable for a wide range of applications including automotive, industrial, and consumer systems. A broad lineup also makes product selection easier.

These new products are high-performance op amps that offer a low input offset voltage, low noise, and high slew rate. TLRx728 features an input offset voltage of 150 μV (typ.), while the BD728x offers 1.6 mV (typ.). Both series have a noise voltage density of 12 nV/√Hz at 1kHz and a slew rate of 10 V/μs. They are therefore suitable for a wide range of precision applications, including sensor signal processing, current detection circuits, motor driver control, and power supply monitoring systems. Both series are designed to balance versatility and high performance rather than being limited to specific applications.

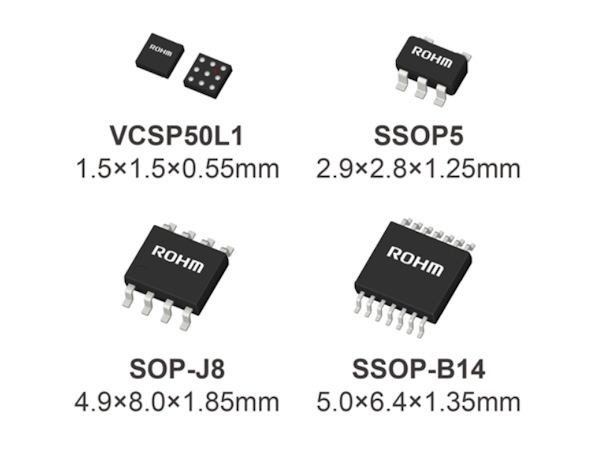

Rail-to-Rail input/output capability allows maximum utilization of the power supply voltage range, ensuring a wide dynamic range. Furthermore, in addition to 1 channel, 2 channels, and 4 channels configurations, a diverse range of packages is available, enabling optimal product selection based on application and board size (more info).
