Innovative, customized, and sustainable – these are the keywords for the numerous research projects of the Fraunhofer IPMS.
The Fraunhofer Institute for Photonic Microsystems IPMS is one of the leading research institutes for the development and production of electronic, micromechanical, and optical components and their integration into intelligent systems. With innovative micro-electro-mechanical systems (MEMS) and micro-opto-electro-mechanical systems (MOEMS), the institute opens up new applications through improved properties and additional functions. These include smaller dimensions, higher energy efficiency and increased performance. The institute presented some of its many research results at the photonics tech event SPIE Photonics in San Francisco.
Photonic Microsystems for High-Resolution Lighting Control
Fraunhofer IPMS develops spatial light modulators with up to several million mirrors on a semiconductor chip. So-called piston micromirror arrays enable high frame rates and high-precision wavefront modulation. A new field of application is the generation of computer-generated holograms in applications such as augmented, virtual and mixed reality. The micromirror arrays (MMA) developed at Fraunhofer IPMS are characterized by precise analog control of the deflection of each individual pixel and a wide wavelength range. Other potential applications include high-resolution DUV microlithography, adaptive optics and wavefront control.

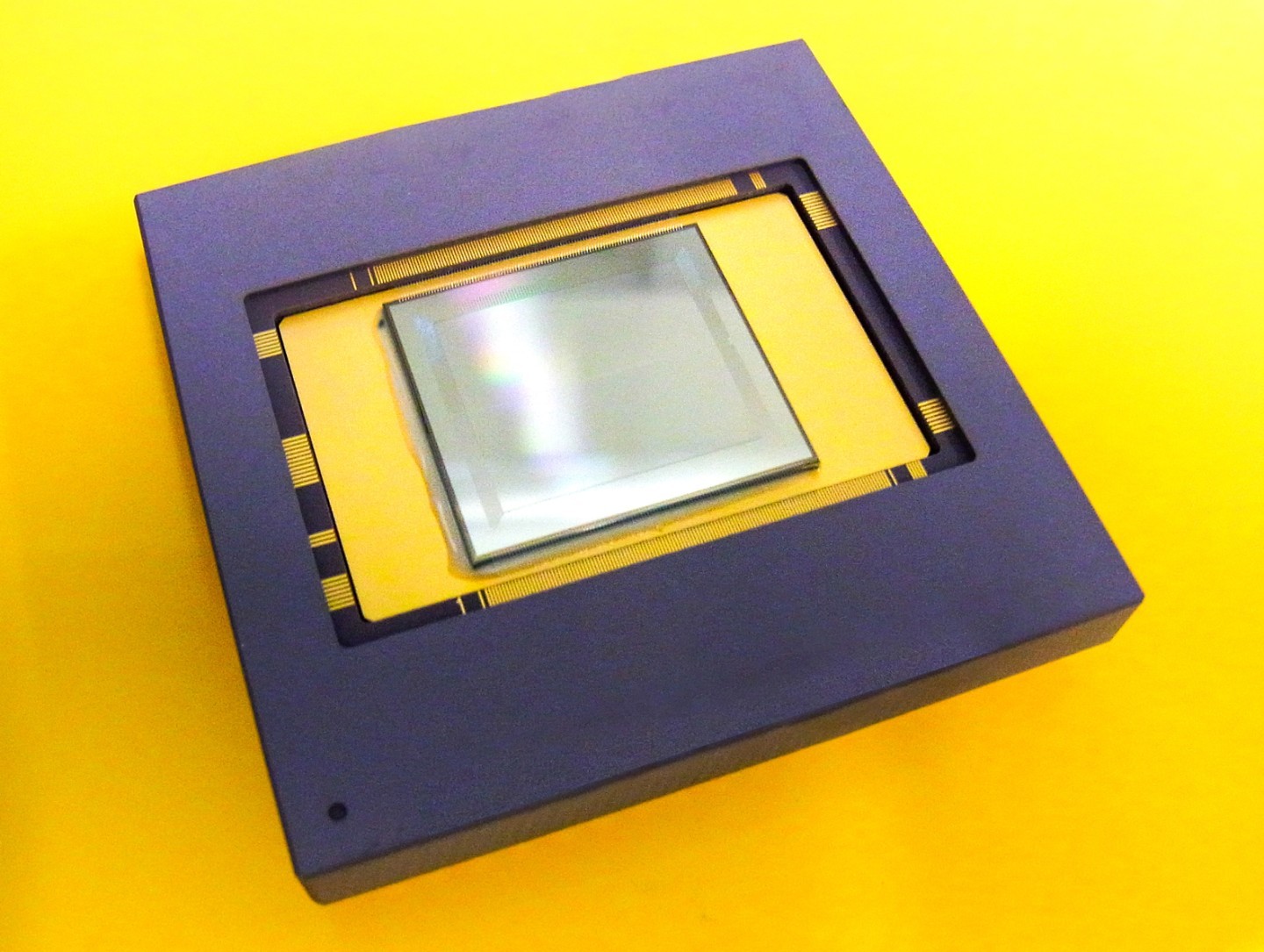

Micromirror array with 8 million phase-shifting pixels with group-by-group control for the development manufacturing technology (© Fraunhofer IPMS)
Custom MEMS Scanner Design and Qualified Production
Fraunhofer IPMS has extensive expertise in the development and production of MEMS scanners based on monocrystalline silicon. These components are characterized by large scanning angles, high scanning frequencies, on-chip position sensors and excellent long-term stability.
At the trade fair, the research institute presented for the first time a novel electrostatically driven vector scanner that can be used for rapid beam positioning of a compact medical therapy laser. The laser was developed for the treatment of retinal diseases and features high precision and speed of the vectorial beam positioning combined with high energy efficiency and suitability for high laser power.
In addition, this approach allows the fabrication with Fraunhofer IPMS' own AME75 technology, so that all combinations of vectorial (quasi-static) positioning and resonant scanner oscillation 1D, 2D can now be realized with one fabrication technology. This significantly expands the design space for Fraunhofer IPMS MEMS scanners.

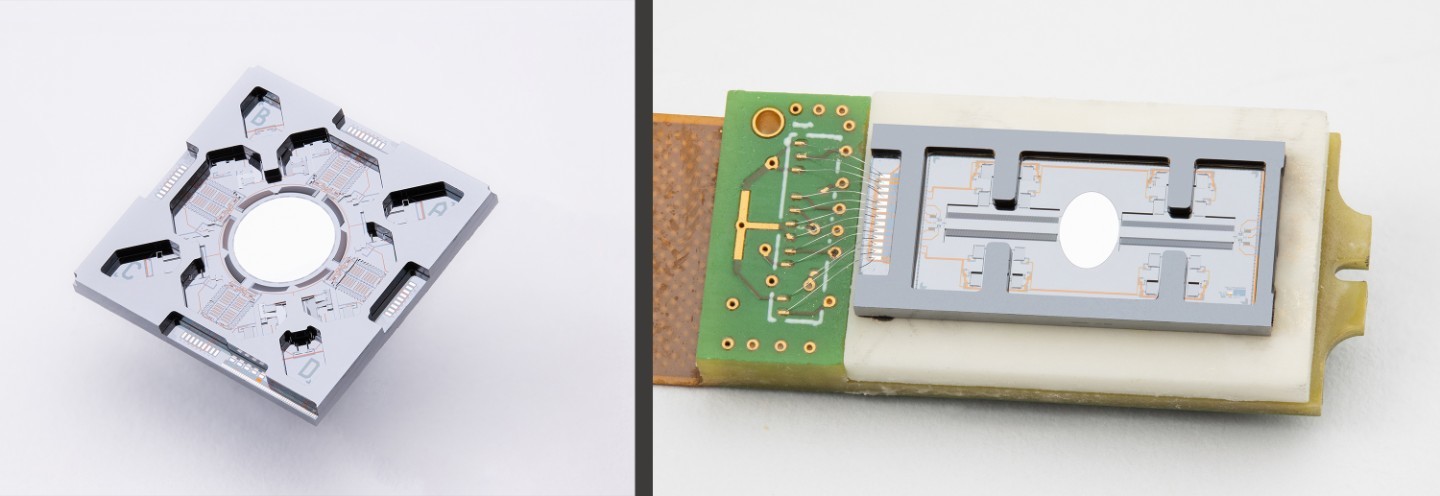

Example of a quasi-static MEMS scanner mirror: left - translation, right - 1D torsion (© Fraunhofer IPMS)
Integration of complex optical systems using "place and bend assembly"
Fraunhofer IPMS also presented developments based on a new approach called "Place and Bend Assembly". This approach has been developed for the efficient integration of complex optical systems in large quantities.
The concept has been tested with 3D printed components. More recent developments aim to use injection molding to produce substrates in large quantities and to integrate functional and optically active surfaces into the substrate.
In addition, "place and bend assembly" technology is being used in MEMS-based systems. In near-infrared (NIR) spectroscopy, the NIR hyperspectral camera is replaced by a MEMS deflection system, single-point NIR measurement, and artificial intelligence (AI) control. The innovative approaches for multi- and hyperspectral imaging systems using fully reflective optics allow the use of a single lens for a wide spectral range. Together with appropriate beam splitters, this allows the use of multiple imaging sensors in a single optical system. Such optical systems are of great importance in food production for monitoring environmental pollution, water consumption, fertilizers, and chemical pesticides.
Unified fabrication technology for MEMS photonics: MEMS on PIC
Another development presented at SPIE Photonics West is MEMS on PIC: a cross-platform approach to combining ultra-low power MEMS modulators with photonic integrated circuits.
This combination makes it possible to change the effective refractive index with unique, extremely low dissipation characteristics. This enables high integration density applications such as cryogenic photonic quantum computing. The presented fabrication technology is universally applicable to all common material platforms such as silicon, silicon nitride or lithium niobate. The technological flexibility makes it possible to either use the Fraunhofer IPMS PIC technology (silicon nitride-based) or to cooperate with partners on a cross-platform basis. The manufacturing concept has been successfully demonstrated and enables low voltage devices with very low power consumption and modulation speeds > 1MHz.
Label-free detection with photonic biosensors
Label-free detection methods - i.e. without additional reagents for molecular characterization - have a high application potential. They offer simpler medical diagnostic tools that can be used outside the laboratory, making them accessible to non-specialist users. Fraunhofer IPMS develops photonic label-free biosensors based on integrated photonic components fabricated in silicon nitride technology, such as microring resonators and Mach-Zehnder interferometers. They are used for the selective detection of biomarkers or microbial substances and offer a suitable detection method for e.g. the early detection of diseases.

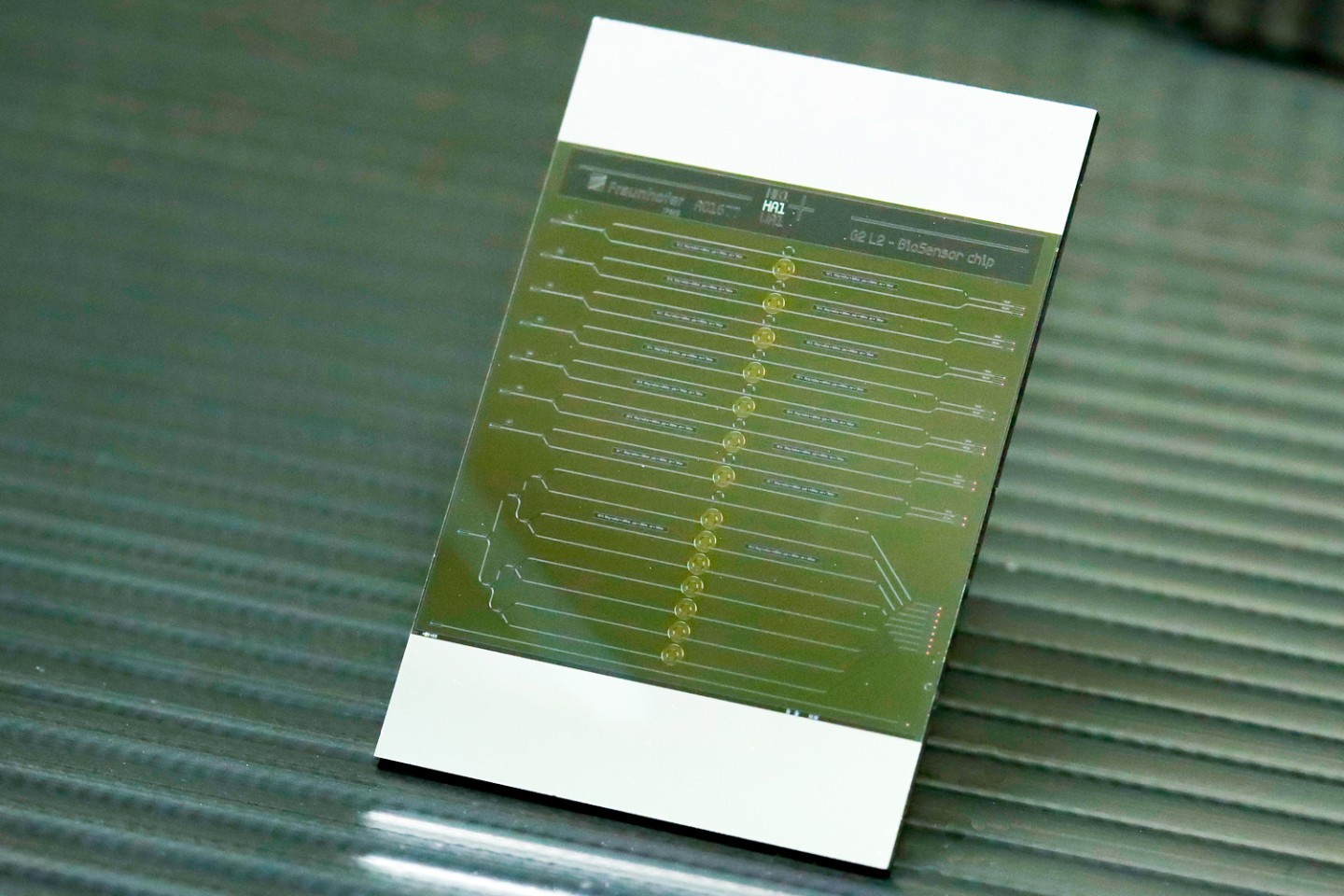

Biosensor chip from Fraunhofer IPMS (© Fraunhofer IPMS)
